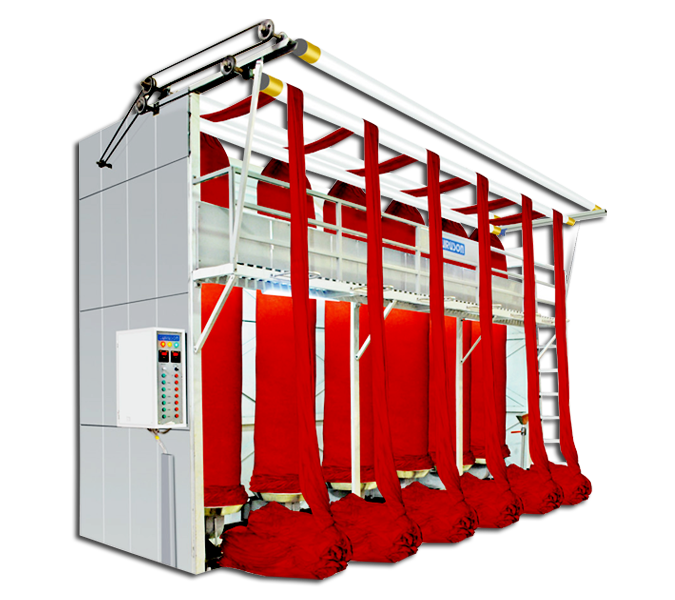

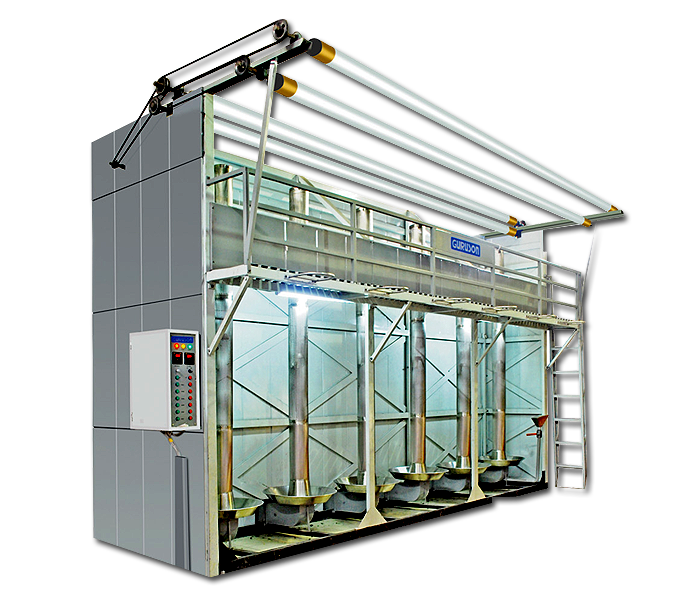

GURUSON make Balloon Pole Dryer is very popular among our exciting Customers and really very efficient with fast drying features. This machine is used for drying knitted fabric in tube form. Heating options are with steam/thermic fluid/oil/gas fired as required. Heat Setting Machine helps to remove crush marks, Crease Marks & wrinkles of knitted fabrics. After process the fabric comes out with excellent finish in plated form.
Technical Specification of Balloon Pole Dryer
|
Model
|
Pole Size Ø X Height No. Of Polls |
Drive Motor Blower Motor
|
Gear Box Frame Ratio
|
Overall Dimensions
|
|---|---|---|---|---|
|
GPD Two Poll
|
140 x 3300 2 Nos. |
1 H.P. DC 1440 rpm.
3 H.P. (2Nos) 1440 rpm. |
2″ x 1/10″
|
2400 x 1900 x 4270
|
|
GPD Four Poll
|
140 x 3300 mm 4 Nos |
1 H.P. DC 1440 rpm.
3 H.P. (4Nos) 1440 rpm. |
2″ x 1/10″
|
4300 x 1900 x 4270
|
|
GPD Six Poll
|
140 x 3300 6 Nos |
2 H.P. DC 1440 rpm.
3 H.P. (6Nos) 1440 rpm. |
3″ x 1/10″
|
6400 x 1900 x 4270
|
