GURUSON Steam Calendar is specially designed to press and finish the 100% Cotton fabric, sinker, interlock, knitted fabric in in tube form. We have got two models one is single roll and other double roll. Temperature between the rolls is controlled up to to 125° C. The machine is available in four different sizes i.e.36″, 48″, 60″, 72″ working width. The motorized and magnetic stretcher is provided to keep the width of fabric constant and makes it possible to obtain the desired overfeed.

STEAM CALENDER MACHINE

DOUBLE VAPORIZER TANK
Makes it possible to moisten the fabric on either side to ease the spreading out of the fabric before the calendaring process is performed. The double tank is made entirely of stainless steel.

SALIENT FEATURES

• PLC and Touch screen
• Motor supported with V.F.D.

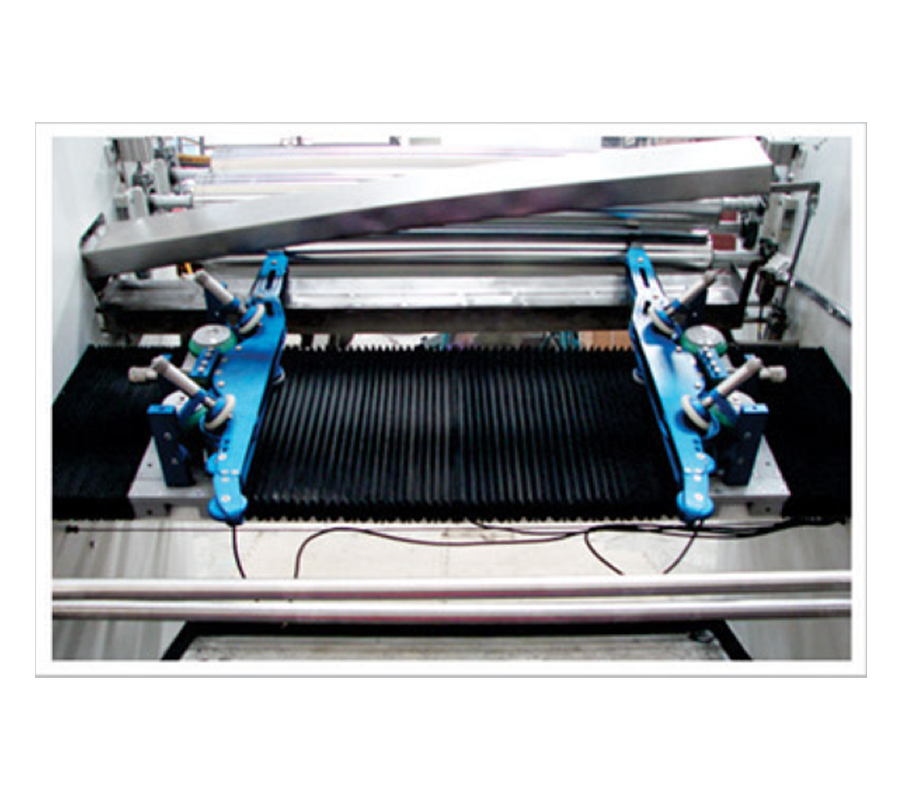

• Magnetic stretcher
• Maximum working width 1500mm.
• Minimum working width 300mm.
• Working speed 0-40 M/Min.
• Electric load 5 H.P.
• Steam consumption 100-200 Kg./Hr.
• Overall dimensions 2900x1900x1850 (WxLxH)
