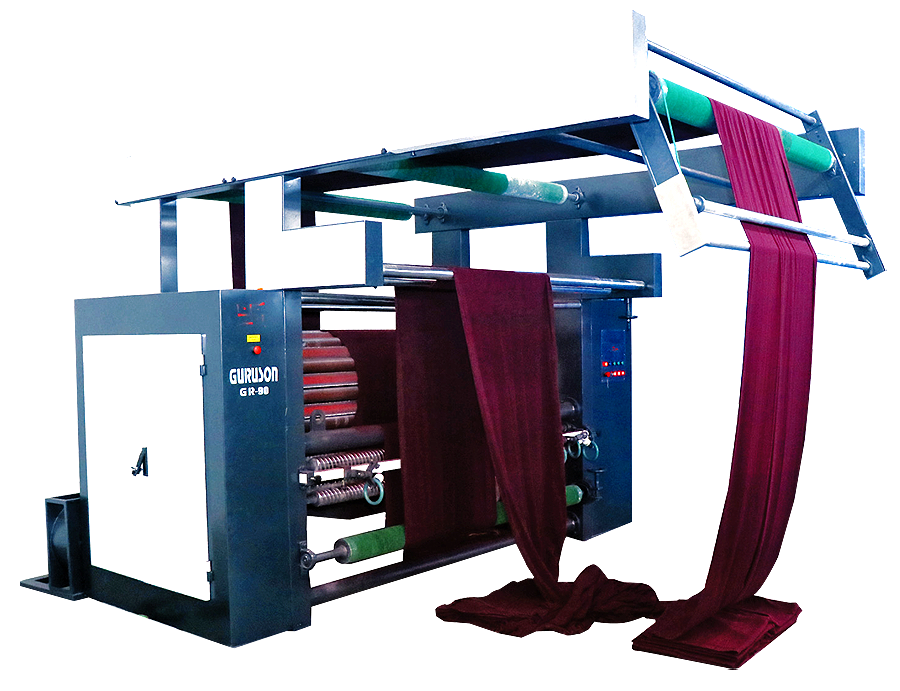

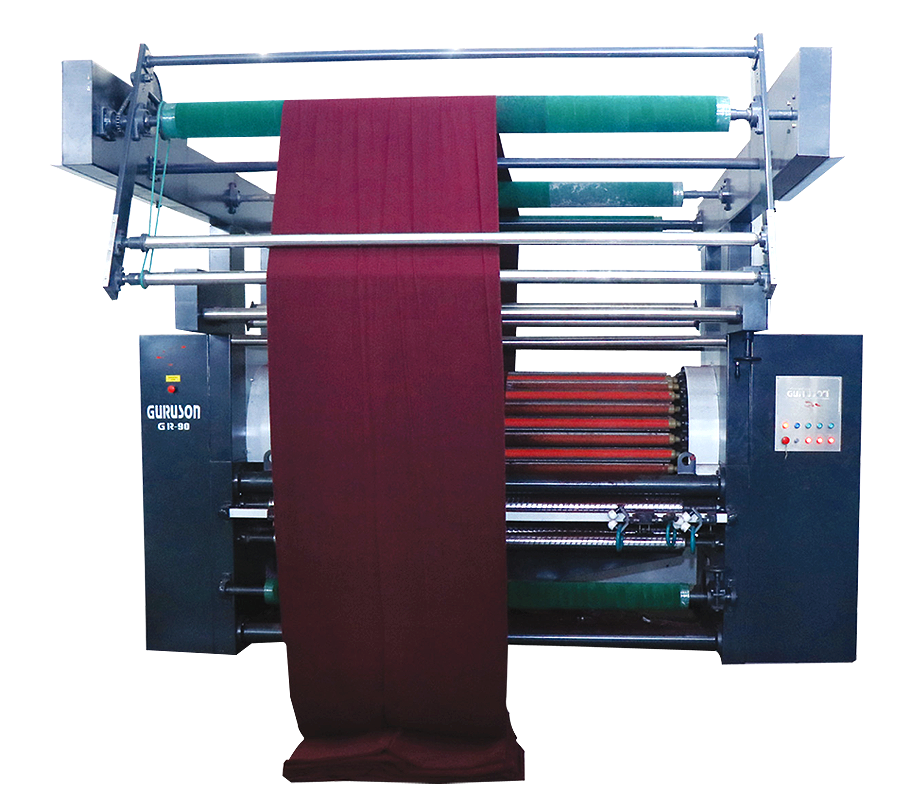

GURUSON with enriched industrial experience and knowledge are manufacturing a wide rage of textile raising machine. The machine is mainly used for raising, the surface of knitted fabrics, cotton fabrics and cotton polyester fleece For example pollar fleece, French Terry and most of the knitted fabric etc
Salient Features:

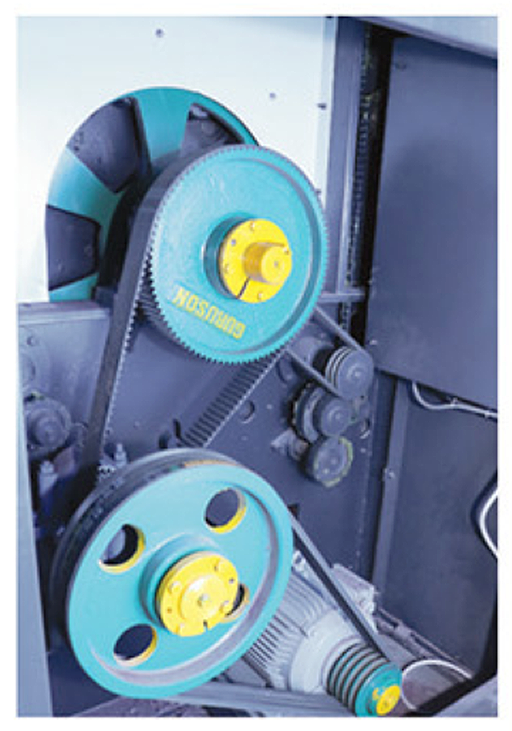

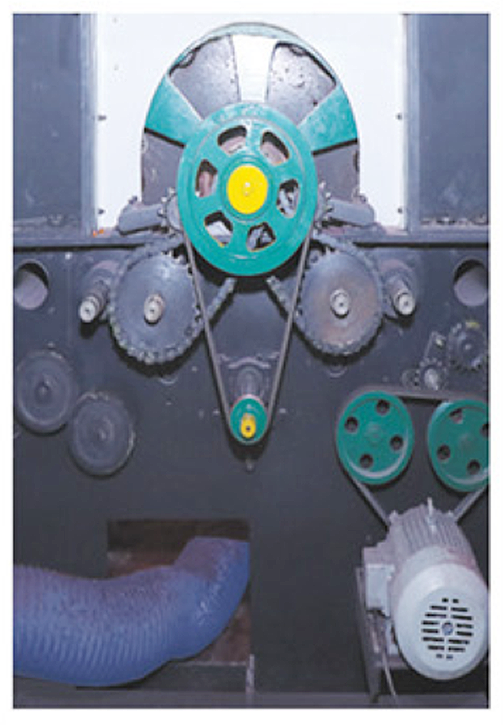

- Fabric speed controlled by gear
- Fabric plating controlled by gear and A.C. drive
- Gear center are fixed

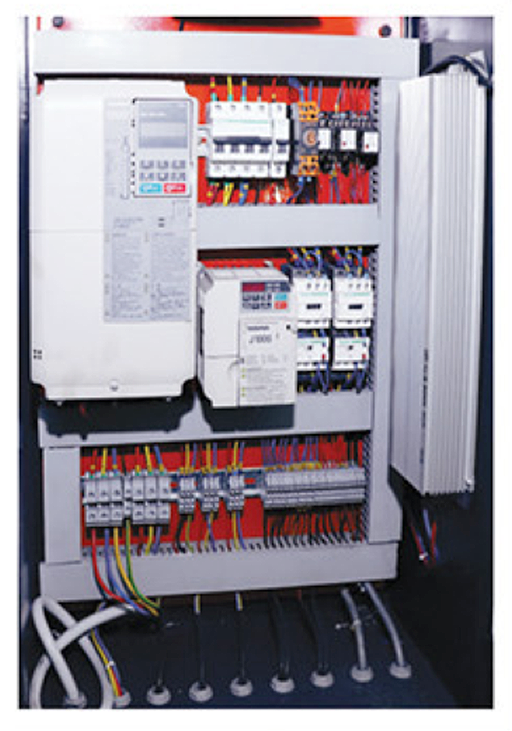

- Main cylinder speed controlled with A.C. drive
- Main cylinder stopped with help of electric brake.
- 12 roller are pile and 12 roller are counter pile
- Rollers are dynamically balanced
- All roller shaft are induction hardened and grinding
- Main cylinder all bearing are doubled roller bearings
- Low power consumption
Technical Specification for Rasing Machine for Tube Knitting & Open Width Fabric
| GURUSON MODELS | GR-1500 | GR-2000 | GR-2200 |
|---|---|---|---|
|
Roller Width |
1500mm |
2000mm |
2200mm |
|
No. of Rasing Roller |
24 |
24 |
24 |
|
Diameter of Raising Roller |
60mm |
60mm |
60mm |
|
Speed of Cylinder |
112RPM/min, |
112RPM/min, |
112RPM/min, |
|
Power Consumption |
14 HP |
16.5 HP |
19 HP |
|
Over all Dimension (LxWxH) |
3770×3280×2700mm |
3770×3280×2700mm |
3770×3280×2700mm |
