The Machine has got three legs suspension to check the vibration formed due to unbalanced rotating fabric / material. The internal rotating perforated basket is dynamically balanced and made up of stainless steel ( 304 ). The outer drum is also of stainless steel (304). The body structure is made of graded cast iron provided with heavy duty steel springs.

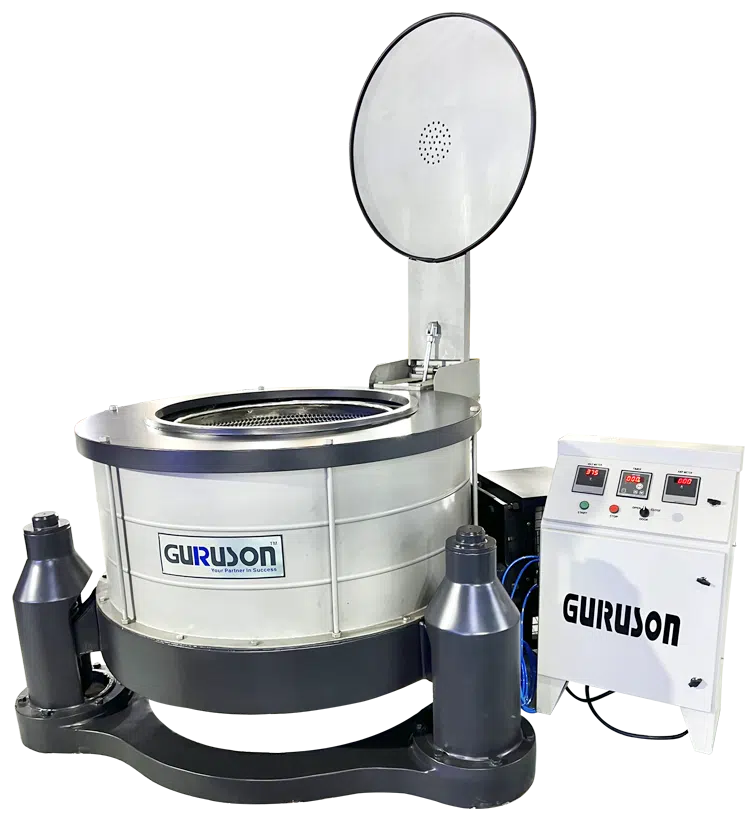

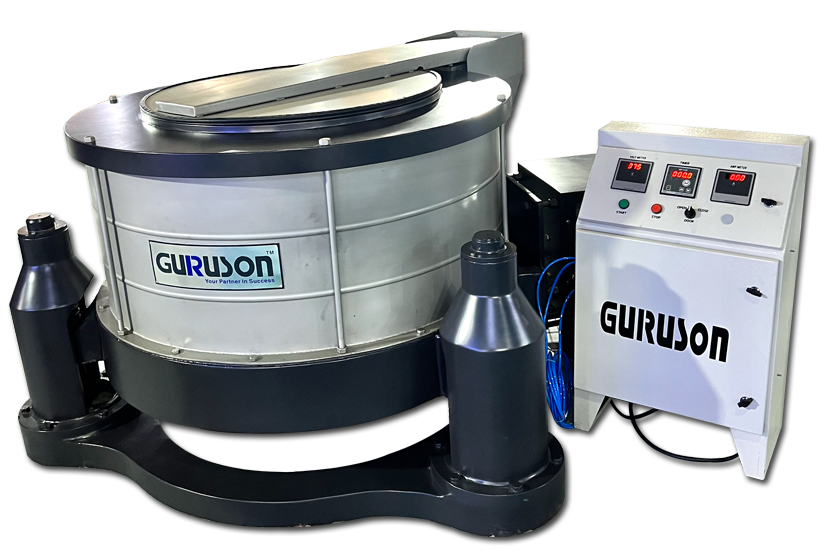

Hydro Extractor (Three Legs Suspension Model)
Technical Specification For Three Legs Suspension Hydro:
|
Capacity In Kgs.
(Std. For Cotton) |
Basket Size
Dia x Depth (mm) |
Basket Rotation
(Rpm) |
Centrifugal Effect
(%) |
Electric Power
(H.P) |
Electric Power
A.C. Drive (V.F.D) |
Drainage
(mm) |
|---|---|---|---|---|---|---|
|
30
|
762 x 380
|
850
|
55-65
|
3.0
|
2 H.P.
|
75
|
|
50
|
915 x 455
|
850
|
55-65
|
7.5
|
3 H.P.
|
75
|
|
100
|
1220 x 555
|
850
|
55-65
|
15.0
|
5 H.P.
|
100
|
|
200
|
1525 x 610
|
720
|
55-65
|
20.0
|
7.5 H.P.
|
100
|
|
300
|
1525 x 960
|
650
|
55-65
|
With V.F.D.
|
10 H.P.
|
125
|
|
400
|
1525 x 1140
|
600
|
55-65
|
With V.F.D.
|
10 H.P.
|
125
|
|
400
|
1828 x 765
|
550
|
55-65
|
With V.F.D.
|
15 H.P.
|
125
|
|
600
|
1828 x1015
|
550
|
55-65
|
With V.F.D.
|
20 H.P.
|
125
|
Hydro Extractor
(Direct Drive)
Direct Motor drived, high speed, self balancing, auto DC break, auto timed, auto stop. This machine has got excellent performance like low noise and vibration free due to its unique suspension system. It takes less time due to its high speed rotation having good results.
Technical Specification For Direct Drive Motor Hydro:
|
Capacity
Dry Weight Per |
Basket
Dia x Depth |
Basket Rotation
( RPM ) |
Motor
|
Drain
|
Dimensions
(WxDxH) Charge |
|---|---|---|---|---|---|
|
15 Kg.
|
550 x 350
|
1000 RPM
|
3 HP
|
65 mm
|
880 x 1030 x 1150
|
|
25 Kg.
|
710 x 350
|
1000 RPM
|
5 HP
|
75 mm
|
1020 x 1170 x 1150
|
|
50 Kg.
|
1000 x 350
|
750 RPM
|
7.5 HP
|
100 mm
|
1370 x 1580 x 1260
|
Hydro Extractor
(With Loading Unloading Device)
The special construction with a formed basket and equipped with spindles to take up yarn cones. The special basket shape and movable spindle ensure excellent extraction of cones Without distorting the shape.
- Outer & Inner drum SS (304).
- Heavy duty cast-iron bearing housing.
- Heavy Duty suspension spring.
- Variable frequency drive.
- Loading & unloading device (Optional).
- Low power consumption.
- Practically Maintenance free.
Cone Hydro Extractor
The special construction with a formed basket and equipped with spindles to take up yarn cones. The special basket shape and movable spindle ensure excellent extraction of cones Without distrorting the shape.
Salient Features
- High speed machine.
- Leaves less moisture.
- Auto timed.
- Automatic Brake.
- Easy To operate.
- Outer & Inner drum stainless steel (304).
