GURUSON Compactor is designed specially for compacting 100% cotton knitted fabric like jersey, piquet, interlock, plush, rib and sinker etc. as well as cotton blended fabric in rope form, changing the loft and dimensional stability of the fabric and presenting it to plaited form. Fitted with two felt compacting units which makes it to obtain top quality fabric, with minimized shrinking nature and a soft fluffy hand.

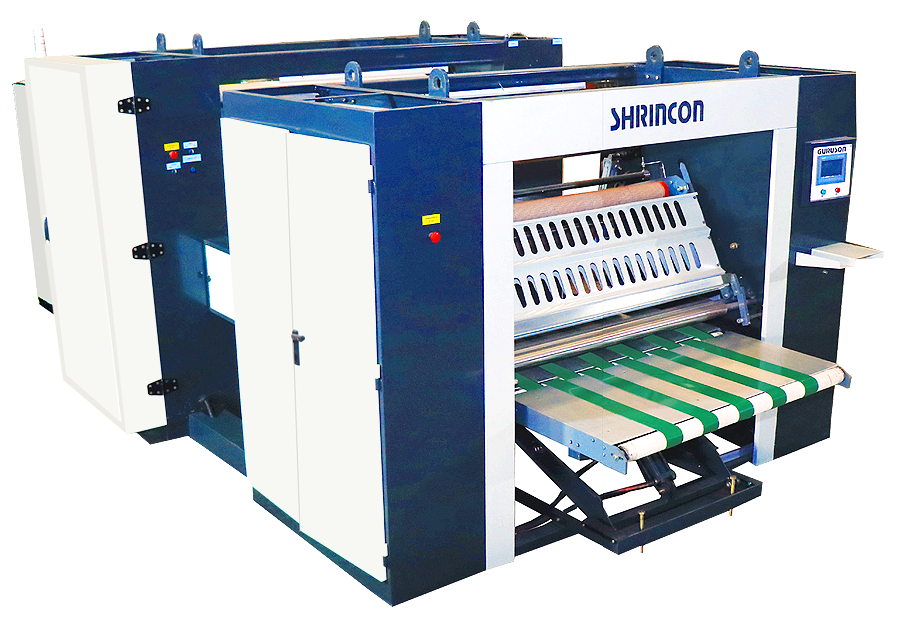

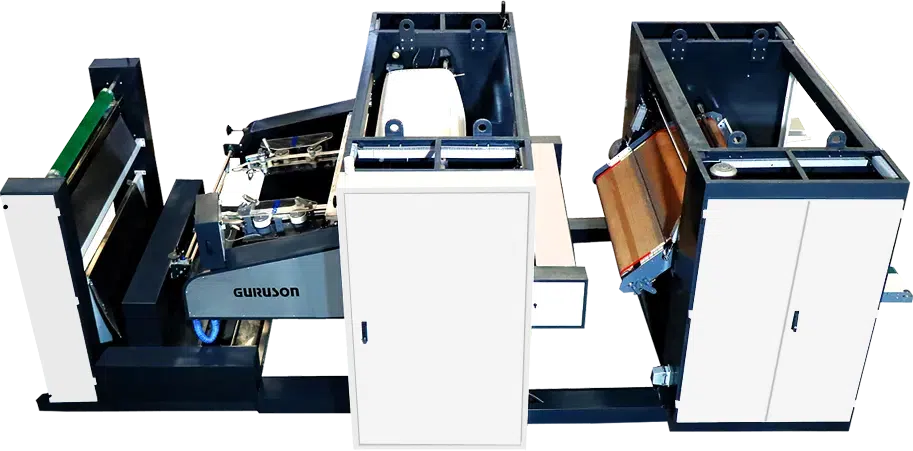

Compactor Machine for Tube Knitted Fabrics
Technical Specification For Compactor Machine For Tube Knitted Fabrics
|

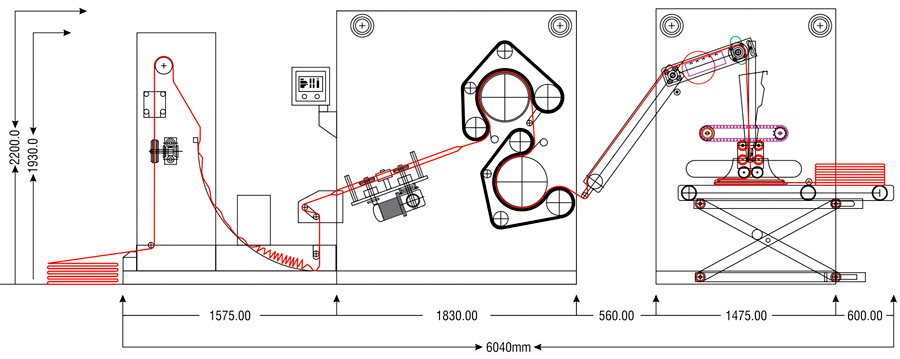

Overall Dimensions (L*W*H) 60″ Compactor
|
6040 x 3350 x 2200 mm
|
|
Overall Dimensions (L*W*H) 72″ Compactor
|
6040 x 3650 x 2200 mm
|
|---|---|
|
Maximum Working Width
|
1400/1700 mm
|
|
Minimum Working Width
|
280 mm
|
|
Working Speed
|
5-40 m / Min.
|
|
Electric Load
|
10 Kw/12Kw
|
|
Steam Consumption
|
150-250 kg / hour-4bar
|
|
Air Pressure
|
4bar
|
Double Vaporizer Tank

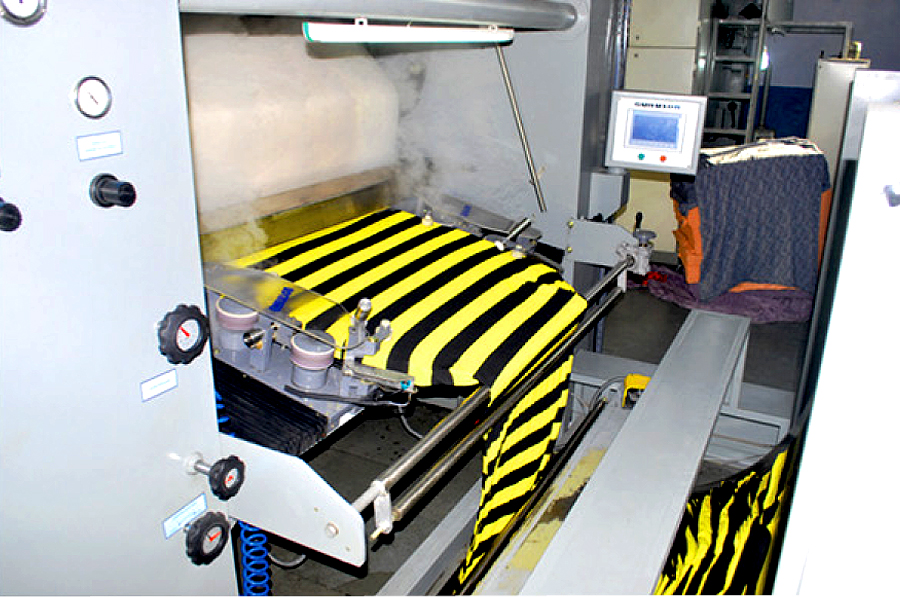

Makes it possible to moisten the fabric on either side to ease the spreading out of the fabric before the calendaring process is performed. The double tank is made entirely of stainless steel. The magnetic & motorized stretcher keeps the width of the tabular fabric constant and makes it possible to obtain the desired overfeed. It transports the fabric to the first felt by opening and stretching the fabric to a variable extent, Which can be controlled from the operator panel. A pair of optical censers makes it possible to detect holes in the fabric, and a safety device ensures that the lances are in the proper position.

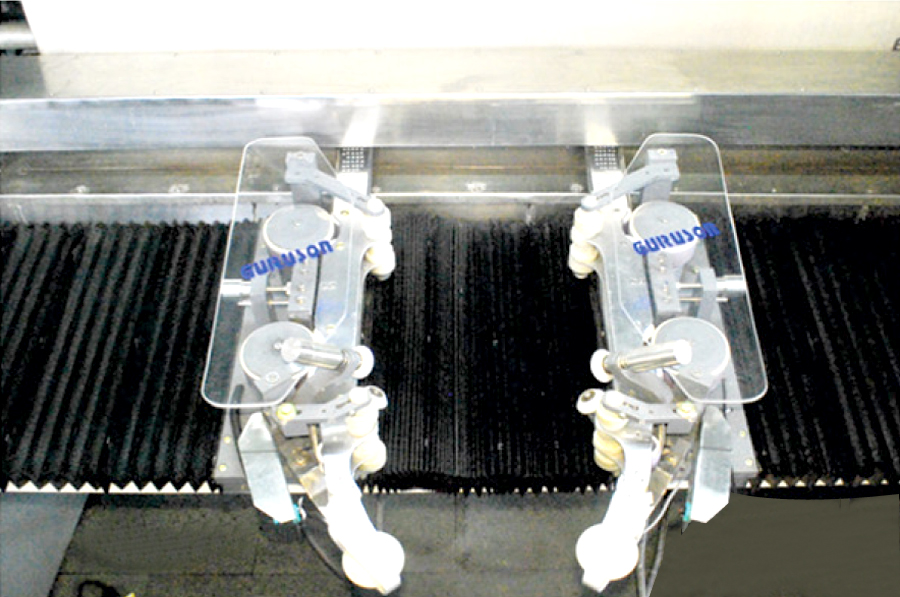

The magnetic & motorized stretcher keeps the width of the tubular fabric constant and makes it possible to obtain the desired overfeed. It transports the fabric to the first felt by opening and stretching the fabric to a variable extent, which can be controlled from the operator panel. A pair of optical sensors makes it possible to detect holes in the fabric, and a safety device ensures that the lances are in the proper position.
Salient Features
- Dimensions stability
- Constant sensitivity during plaiting
- J-Box feeding device AC drive control
- Automatic Cylinder temperature controller
- Overfeeding up to ± 20%
- Photocell fabric detector

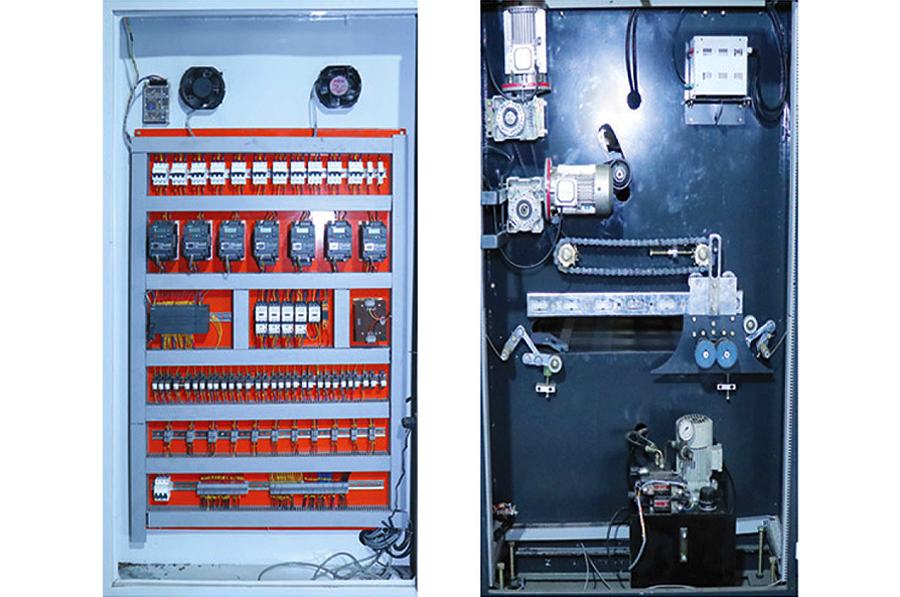

- PLC Controlled

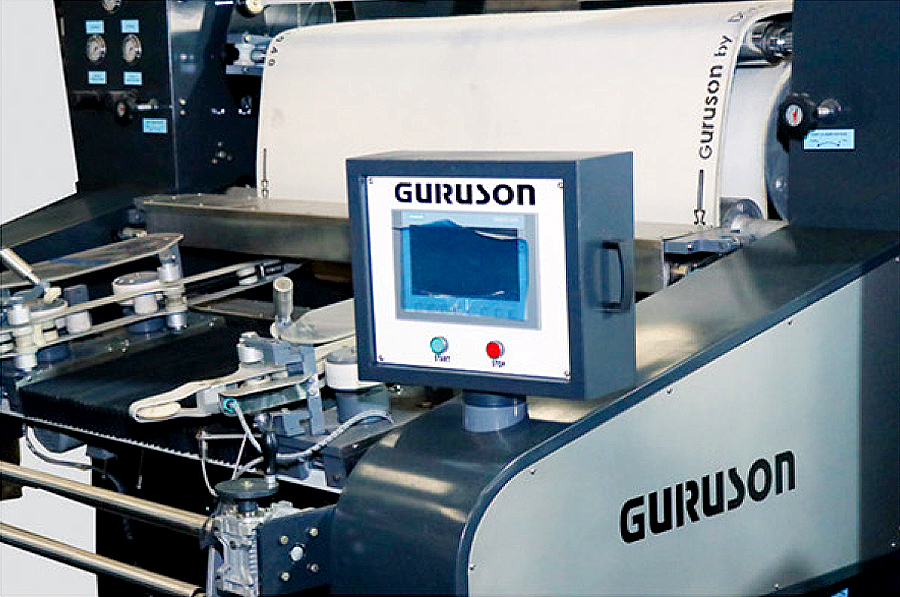

- Duel Touch screen (Digital Display).
- Total Machine A.C. drive controlled.
- Fabric measurement device with digital meter.
- Controlled with pneumatic values & cylinders.
- All gears boxes Italy make.
- Provided with Teflon conveyor
- Felt made in France or Italy.
- Tension rod controlled with gear box
- Hydraulic controlled trolley
- Anti Magnetic device
- Auto width control
